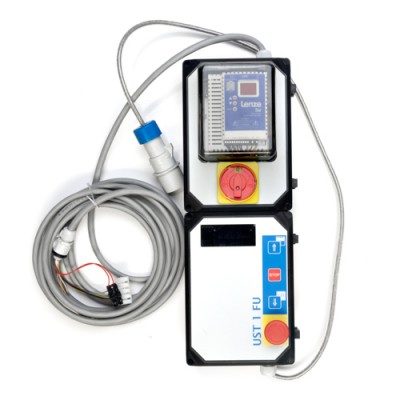

NDC105A - Nice UST1-FU Control Panel with Inverter for High Speed Doors

PLEASE NOTE THIS PRODUCT IS NOW OBSOLETE AND  IS DISPLAYED FOR TECHNICAL ASSISTANCE ONLY

FOR FURTHER ASSISTANCE PLEASE CONTACT support@nvmgroup.co.uk

NDC105A - Nice UST1-FU Control Panel with Inverter for High Speed Doors

UST1-FU control unit with deadman mode. It is ideal for High Speed Doors. It is possible to connect different expansion modules to operate additional functions.

The UP and DOWN buttons on the cover are used to operate the door.

Simple control:

• Automatic & Deadman mode
• Direction of rotational control
• Operation with electronic limit switch
• Connection of additional modules
• Operation with electronic limit switch (optional)
• Connection of OXI radio (optional)
• Emergency stop switch (optional)
• Connection of external control transmitters.

Technical Details:

• Voltage Supply: 1 x 230v Ac 50Hz (10a protection)
•                           3 x 400v Ac 50Hz (16a protection)
• Power at Rest: <4va
• Ambient Temp: from -10 deg C tp +50 deg C
• Control Voltage: Additional Delayed 0.8a fuse
• Protection Rating: IP54 (IP65 optional extra)
• Dimensions: 255mm x 180mm x 120mm

Connection to the Motor via the Inverter:
