Buy SDS101 - Optex OA-Presence Infrared Sensor | Optex

SDS101 - Optex OA-Presence Infrared Sensor (Brand: Optex)

Optex SDS101 - Optex OA-Presence Infrared Sensor (Brand: Optex)

Optex OA - Presence Infrared Sensor

Presence Detection for Threshold & Sidescreen

Mounting Height: up to 3.0mtr
Detection Area: Depth 4 degrees in or out, Width 7 degrees in or out.
Detection Method: Active Infrared
Power Supply: 12-24v AC/DC
Current Draw: 160mA max
Power Operating Indicator: Green LED ON = standby, Red LED ON = presence detection
Output Contact: Form C relay 50V, 0.3A resistance load.
Relay Hold Time: Approx 0.5 sec
Operating Temp: -20C - +55C
Dims: 221mm x 63mm x 29.9mm
Weight: 200gm

0.00 In Stock

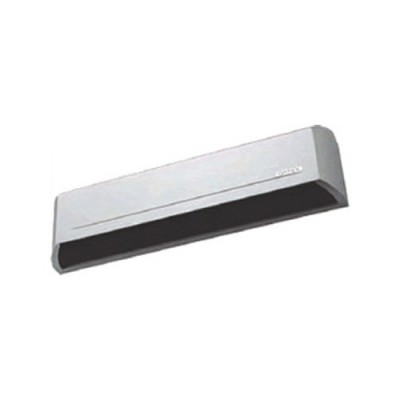

SDS101 - Optex OA-Presence Infrared Sensor image

Availability:: In Stock
Product Code:: SDS101
Brand:: Optex

Not yet rated Write a review

Description

Optex OA - Presence Infrared Sensor

Presence Detection for Threshold & Sidescreen

Mounting Height: up to 3.0mtr
Detection Area: Depth 4 degrees in or out, Width 7 degrees in or out.
Detection Method: Active Infrared
Power Supply: 12-24v AC/DC
Current Draw: 160mA max
Power Operating Indicator: Green LED ON = standby, Red LED ON = presence detection
Output Contact: Form C relay 50V, 0.3A resistance load.
Relay Hold Time: Approx 0.5 sec
Operating Temp: -20C - +55C
Dims: 221mm x 63mm x 29.9mm
Weight: 200gm
