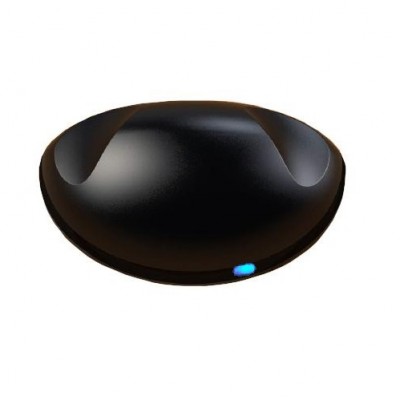

SDS008 - Hotron HR50 - Uni-Directional Sensor for Swing Doors (Brand: Pepperl+Fuchs)

SDS008 - Hotron HR50 - Uni-Directional Sensor for Swing Doors

Features:

• Detection Method: K Band 24.125Ghz Microwave Motion Detection
• Installation Height: Max 4000mm
• Sensor Dims: 120mm W x 70mm H x 41.5mm D
• IP Rating: 54
• Colour: Black

Technical Details:

• Power Input: 12 - 30v Dc
• Power: <1.4w
• Power Max 125v Ac
• Output: PhotoMOS Max Resistance 35ohms
• Width Adjustment: Left/Right 0-30 degrees in each direction
• Depth Adjustment: Up/down 0-90 degrees
• Max Installation Height: 2500mm
• Sensitivity Adjustment: Potentiometer
• Detection Speed: 0.3m/s
• Switching Current: 0.24A (100ms)
