HSD001 - INCOLD ZIP PRIME - Rapid Roll Door (Brand: Incold)

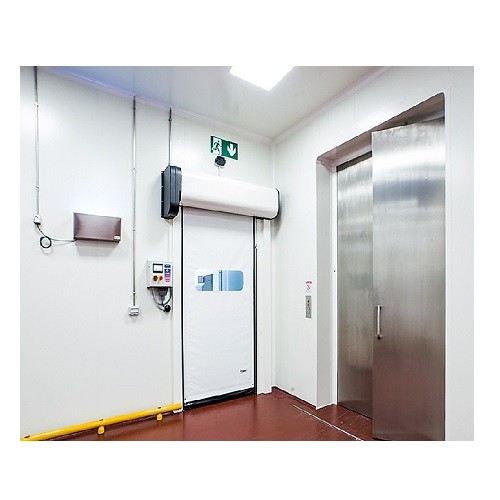

INCOLD ZIP - PRIME

Incold Zip Prime is our most popular High Speed Roll Up Door. Designed to operate Internally and Externally, the door can function in temperatures ranging from +40ºc to +1ºc at speeds of upto 1.5m/s.

Fitted with a Sequential Light Barrier & Encoder and Soft Safety Edge as standard makes it one of the safest High Speed Door's on the market. With no hard edges and a self-repairing curtain, injury to pedestrians and damage to stock is impossible.

Maximum recommended Door size 4500mm W x 4500mm H

Certification:

• Manufactured to EN 13241-1 & CE Certified
• Sequential Light Barrier complies to EN 12445 Safety Regulations
• Wind Rating to EN 12424 Class 3 (upto 120km/hr)

Features:

• Up to 1.5m/sec opening.
• Up to 300 Cycles per Day*
• 0.75kw Single Phase Motor 220/240v with Electronic Brake and Absolute Encoder
• Manual Override & Emergency Release Functions
• Thermoformed ABS Motor Cover
• Integral Soft Safety Edge
• Sequential Light Barrier & Encoder as standard
• Built In Emergency Stop Button
• Intergral Control Panel with Error Code Display.

Columns & Winding Shaft

• Extruded Aluminium Winding Shaft
• Vertical Columns in extruded Aluminium with PPC RAL 9010 White finish as standard
• Aluminuim Canopy

Curtain Detail:

• Full Self-Repairing Curtain
• 930gm/m² Curtain (Available in 1300gm/m² Insulated)
• Vision .Panels (Full curtain)
• 16 RAL Colours as Standard (3 RAL Colours Insulated)

Options:

• Induction Loops
• Pull Cord
• Remote Control
• Radar Heads
• Push Button
• Traffic Lights & Sounders
• Inverter for Soft Stop / Soft Start 3phase 380/415v
• UPS Control Panel for Power Fail
• Counterweight System for manual operation if Power Fail
